Where do you guys hook a tow strap on the front? Plenty of slots next to the receiver on the rear but not really a great spot on the front for a strap or for hooking the winch line when you double it with a snatch block. Dead center above the winch is a tube a guy could wrap strap around but probably wouldn't take much jerking to bend it.

  • Like
Reactions: Pagerboy

·
Registered
Joined
·
49 Posts
I added the yamaha front reciever hitch under the winch mount plate and have a insert that has a D ring welded to it. I havent used it on the viking yet but had this same set up on my Rhino and worked great.


·
Registered
Joined
·
163 Posts
Discussion Starter · #4 ·
I added the yamaha front reciever hitch under the winch mount plate.

So the receiver hitch will work with a winch mounted? Some reason I was thinking it was either/or. If this is the case I think we have a winner.


·
Registered
Joined
·
29 Posts

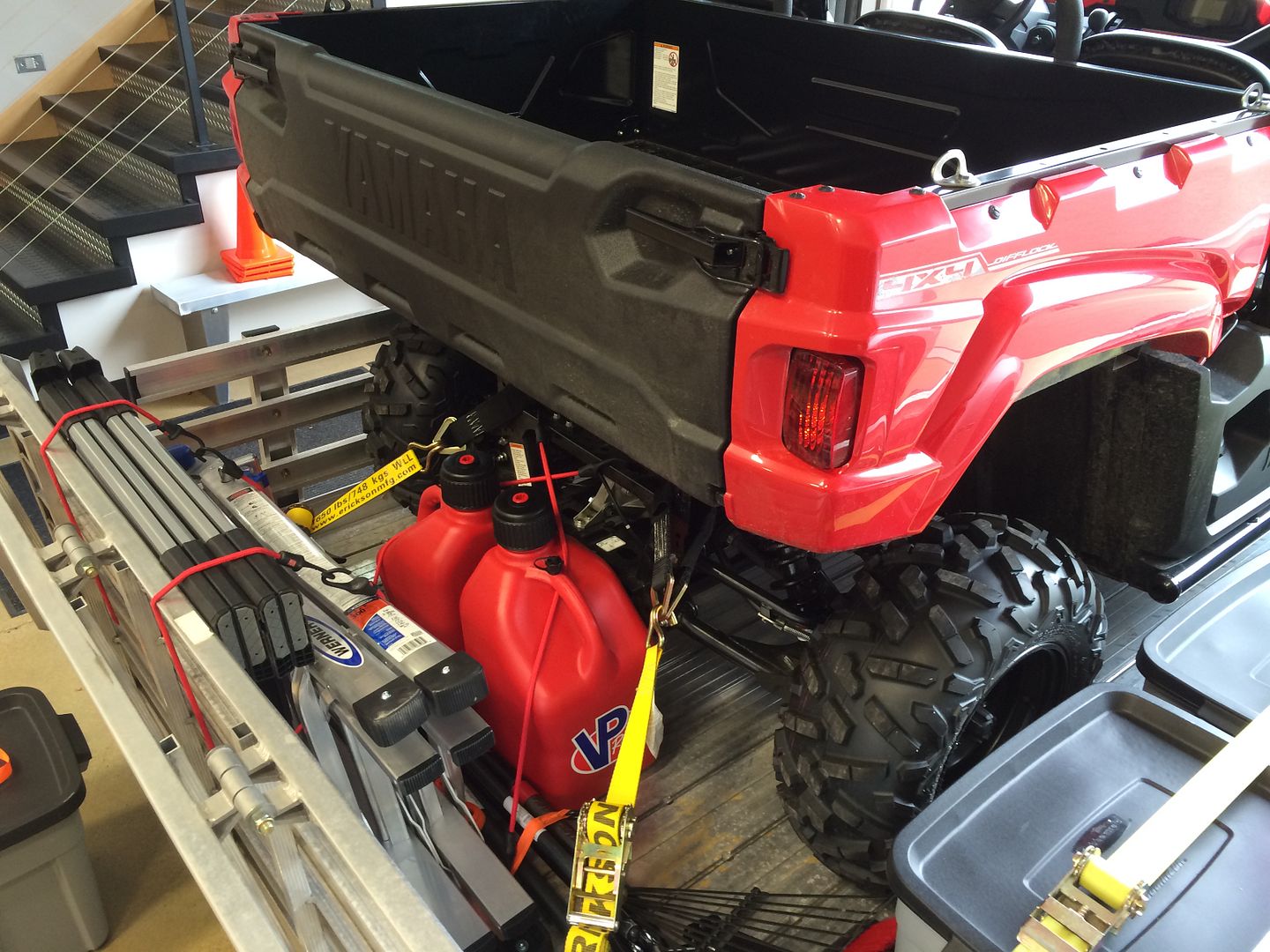

I go 'through' the winch mount and over the native brush guard.

I haven't found a component on the front end strong enough to use for a corner to point placement.

The back is tied independently, so I'm not too concerned about the front moving side to side.





·
Premium Member
Joined
·
1,369 Posts
I go 'through' the winch mount and over the native brush guard.

I haven't found a component on the front end strong enough to use for a corner to point placement.

The back is tied independently, so I'm not too concerned about the front moving side to side.



I like those tie downs on your bed rails! Where did you get them?


·
Registered
Joined
·
312 Posts
Where do you guys hook a tow strap on the front? Plenty of slots next to the receiver on the rear but not really a great spot on the front for a strap or for hooking the winch line when you double it with a snatch block. Dead center above the winch is a tube a guy could wrap strap around but probably wouldn't take much jerking to bend it.
I usually go around the front support arm ( round bar underneath your front fenders) and back to the trailer.


·
Registered
Joined
·
29 Posts

·
Registered
Joined
·
49 Posts
Yes the winch mount will work with the front reciever hitch. And its a standard 2 inch reciever. The bummer is that you will get another winch mount in the kit. But no wire harness. You will need to notch the front skid plate for the receiver hitch but Yamaha was thinking about this and they have embossed a pattern to follow on the back side although I had to cut mine a bit lower to fit correctly.


·
Registered
Joined
·
163 Posts
Discussion Starter · #10 · (Edited)
Well I figured out a system for a tow attachment. On the bottom front of the winch mount there are two bolt holes. I cut a piece of plate, drilled two holes, welded a 3/4" round stock U to it and bolted it under the fairlead in the existing holes with grade 8 7/16" bolts. Should work out great for a tow strap and when doubling the winch line.


·
Registered
Joined
·
86 Posts
:cool:
